Seating Capacity

Seating Capacity	D+5

Body

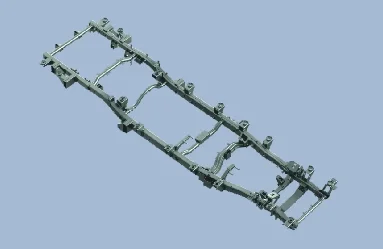

Rectangular Long member	Rectangular, C in C type chassis section

Engine

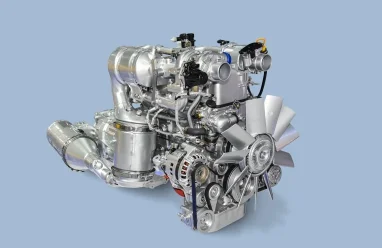

Engine	FM 2.6 CR ED	Displacement	2596 cc
Emission	BS-VI Stage 2	Max Output	67 kW (90 hp) @ 3200 rpm
Type	4 Cylinder, Common Rail, DI TCIC	Max Torque	250 Nm @ 1400-2400 rpm
Bore x Stroke (mm)	90.9 x 100

Dimensions (mm)

Wheelbase	3050	Overall Height	2027
Overall Length	5120	Ground Clearance	191
Overall Width	1818	Overhang Rear	1250

Weight (kg)

Maximum GVW	2990	Payload	995 kg
Turning Radius (m)	6.1 m	Max. Permissible FAW	1205
Max. Permissible RAW	1785

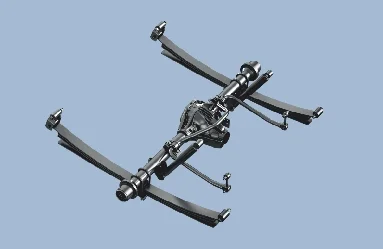

Suspension

Front	Independent type, double wishbone with Anti-Roll Bar
Rear	Leaf spring with Anti-Roll Bar

Wheels & Tyres

Tyre Size	215/75 R15 LT
Tyre Type	Radial with tubeless
