Traveller Wider Body School Bus 4020WB 24+A+D/30+A+D/33+A+D

WhatsApp Now

Salient Features

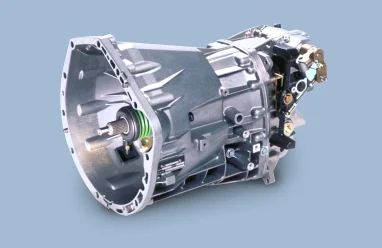

Synchromesh G-32 gearbox for effortless gear shifting
Synchromesh G-32 gearbox for effortless gear shifting

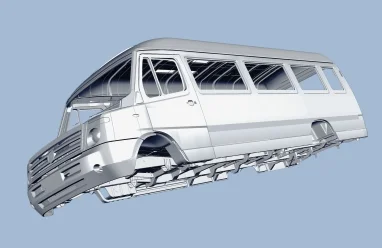

Monocoque body ensures total safety and car-like ride quality
Monocoque body ensures total safety and car-like ride quality
Mercedes-derived, highly powerful and fuel-efficient FM 2.6 CR powertrain
Mercedes-derived, highly powerful and fuel-efficient FM 2.6 CR powertrain

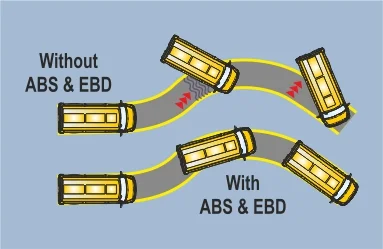

ABS and EBD
ABS and EBD

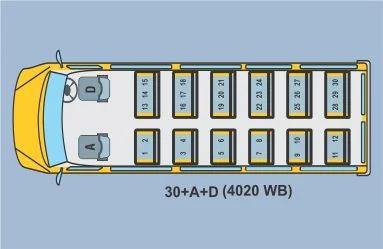

24+A+D/30+A+D/33+A+D
24+A+D/30+A+D/33+A+D

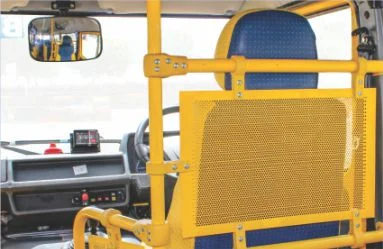

Large internal rear view mirror and driver partition
Large internal rear view mirror and driver partition

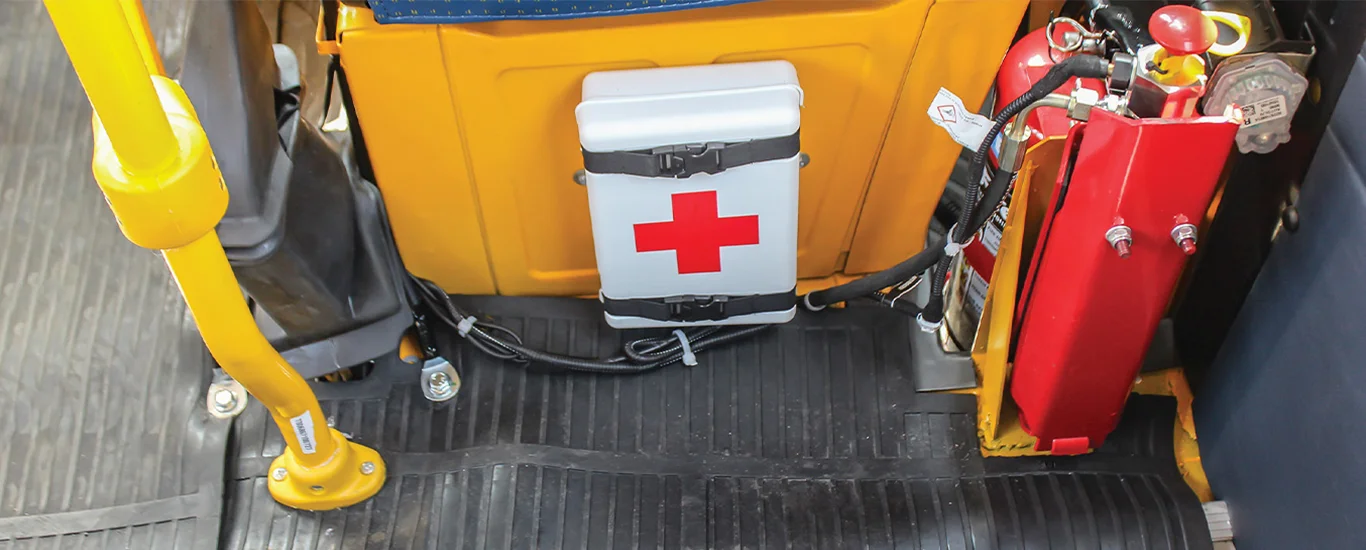

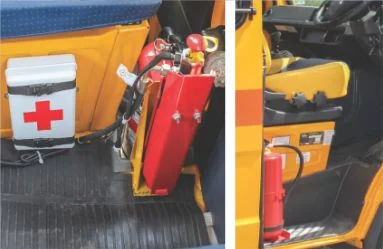

First and Kit and Fire Extinguisher in case of emergency
First and Kit and Fire Extinguisher in case of emergency

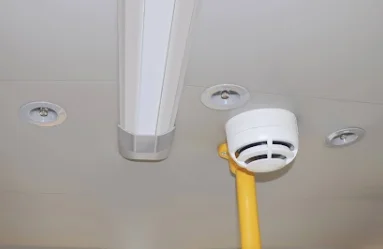

Now, with Best-in-Class & Protection Fire Alarm System for more safety in case of fire
Now, with Best-in-Class & Protection Fire Alarm System for more safety in case of fire
traveller-school-bus-7
traveller-school-bus-8
traveller-school-bus-1
traveller-school-bus-2
traveller-school-bus-3
traveller-school-bus-4
traveller-school-bus-6
traveller-school-bus-5

Technical Specifications

Seating Capacity
Seating Capacity24+A+D/30+A+D/33+A+D
Body TypeMonocoque Construction
Engine FM 2.6 CR ED Displacement 2596 cc
Emission BS-VI Stage 2 Max Output 85kW (114hp) @ 2950 rpm
Type 4 Cylinder, Common Rail, DI TCIC Max Torque 350Nm @ 1400–2200 rpm
Bore x Stroke (mm) 90.9 x 100
Wheelbase 4020 Overall Height 2670/2870
Overall Length 6970 Ground Clearance 180
Overall Width 2385
Maximum GVW

6000

Front & RearSpring Semi-elliptical
Anti-Roll BarFront – Yes / Rear – Optional
Shock Absorbers

Hydraulic telescopic double acting at front and rear
