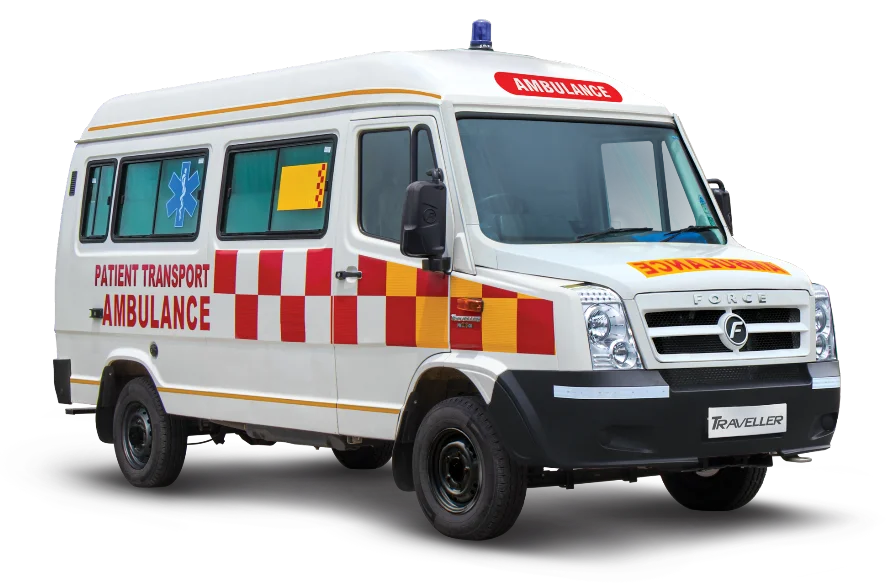

Traveller Wider Body Ambulance 3350WB B-Type 3+D+2P

WhatsApp Now

Salient Features

Monocoque body ensures total safety and car-like ride quality
Monocoque body ensures total safety and car-like ride quality

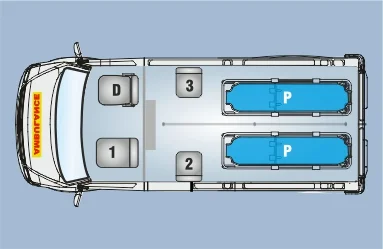

3+2P+D seating
3+2P+D seating
Mercedes-derived, highly powerful and fuel-efficient FM 2.6 CR powertrain
Mercedes-derived, highly powerful and fuel-efficient FM 2.6 CR powertrain

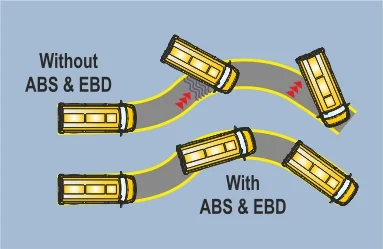

ABS with EBD
ABS with EBD

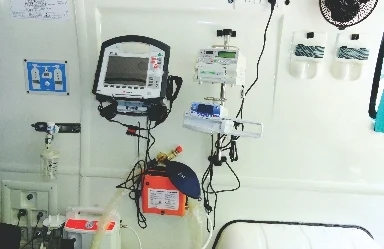

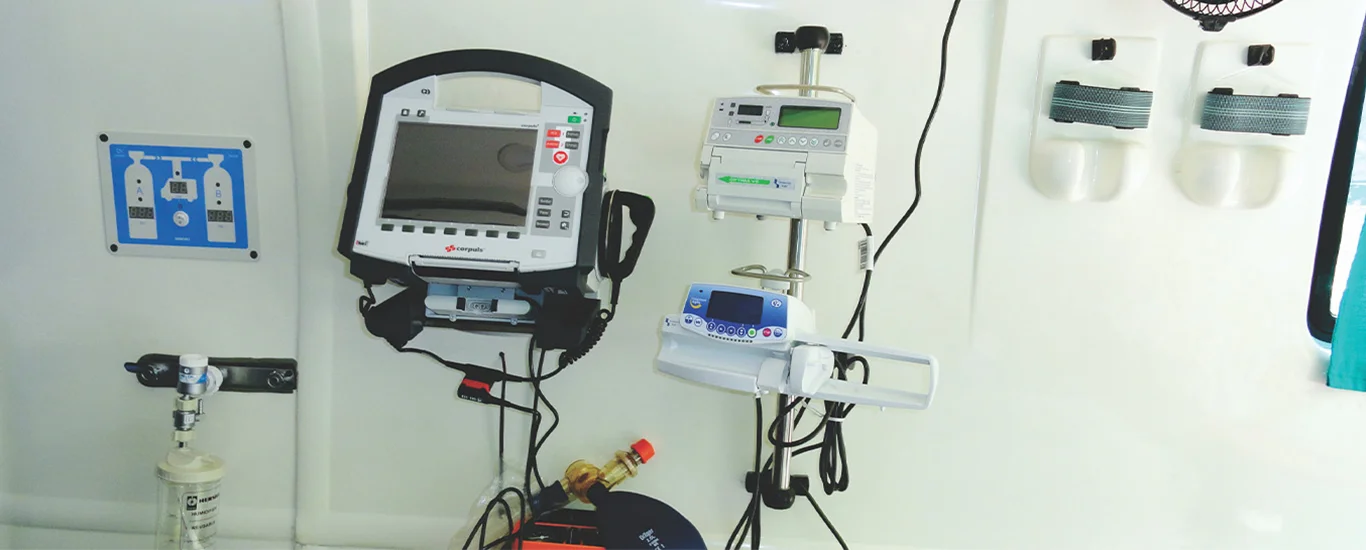

Sidewall reinforced to mount defibrillator, ventilator, suction pump, etc
Sidewall reinforced to mount defibrillator, ventilator, suction pump, etc

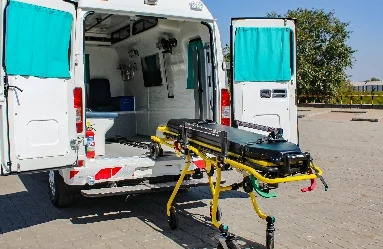

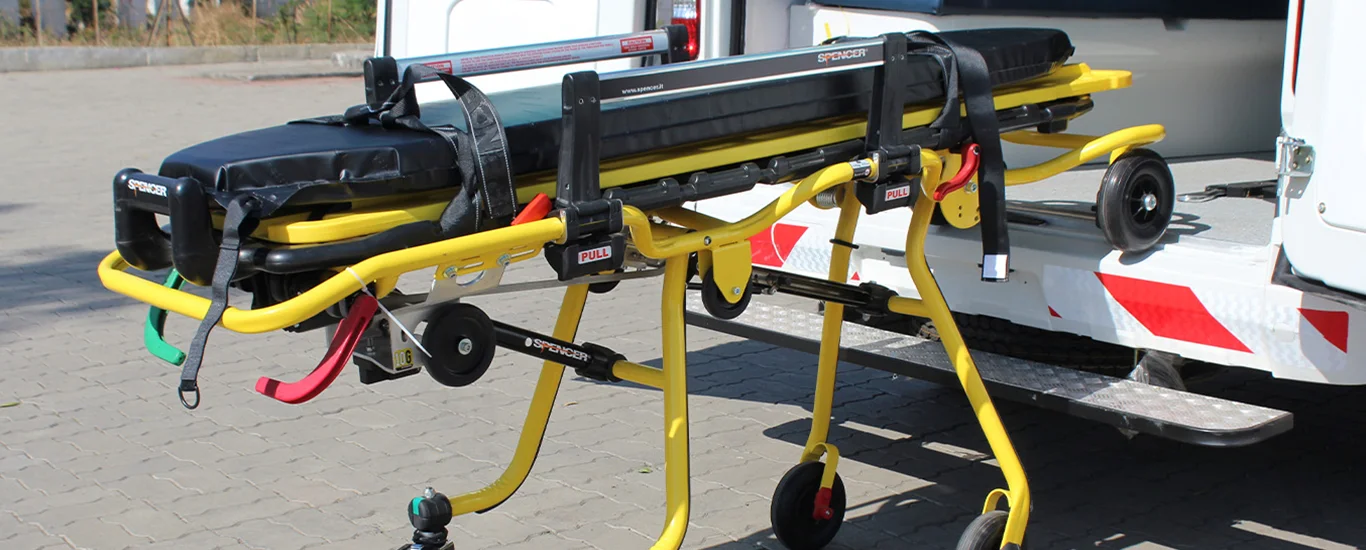

Floor height 690 mm for loading foldable stretcher cum trolley (AIS - 125 certified)
Floor height 690 mm for loading foldable stretcher cum trolley (AIS - 125 certified)

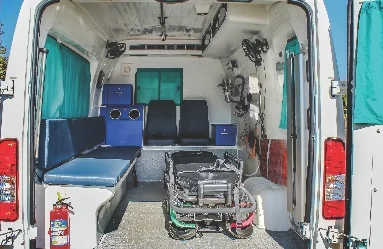

Separate doctor seat & squad bench for paramedic staff or relatives
Separate doctor seat & squad bench for paramedic staff or relatives

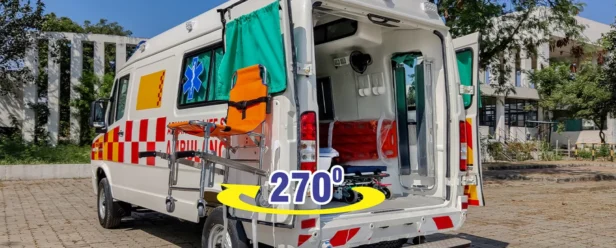

270° door opening with self-locking
270° door opening with self-locking

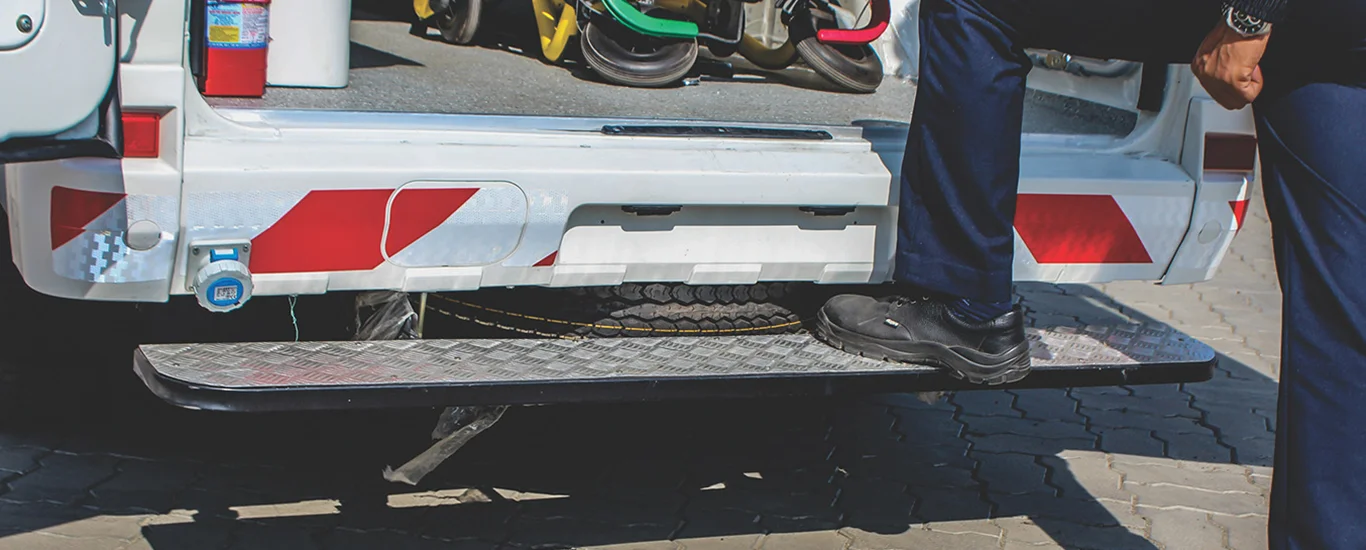

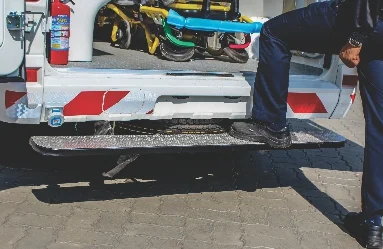

Full-length footstep (1600mm × 190mm) and 405mm height in T1 from ground for ease of entry and exit
Full-length footstep (1600mm × 190mm) and 405mm height in T1 from ground for ease of entry and exit

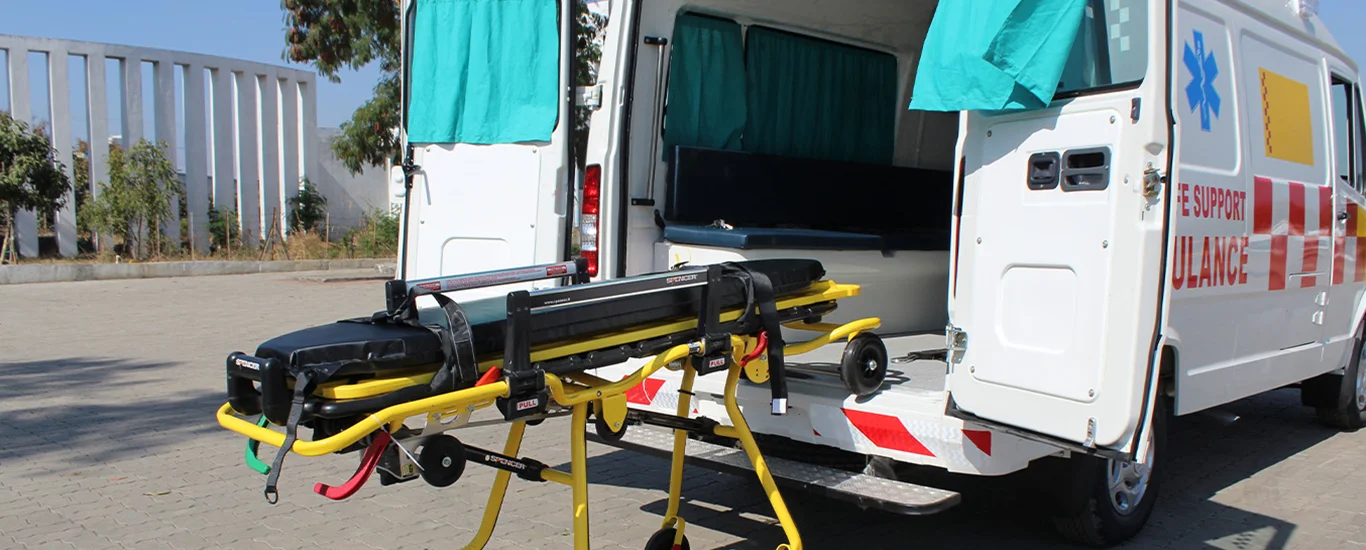

ambulance-b-4
ambulance-b-5
270° door opening with self-locking
Full-length footstep (1600mm × 190mm) and 405mm height in T1 from ground for ease of entry and exit
ambulance-b-1

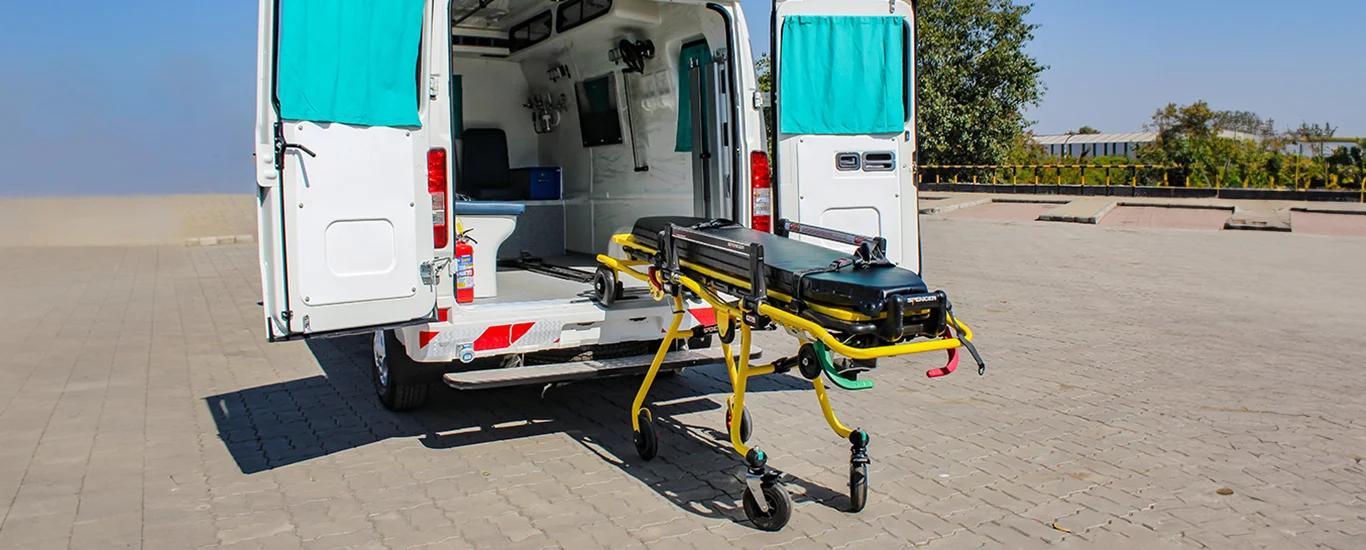

ambulance-b-3

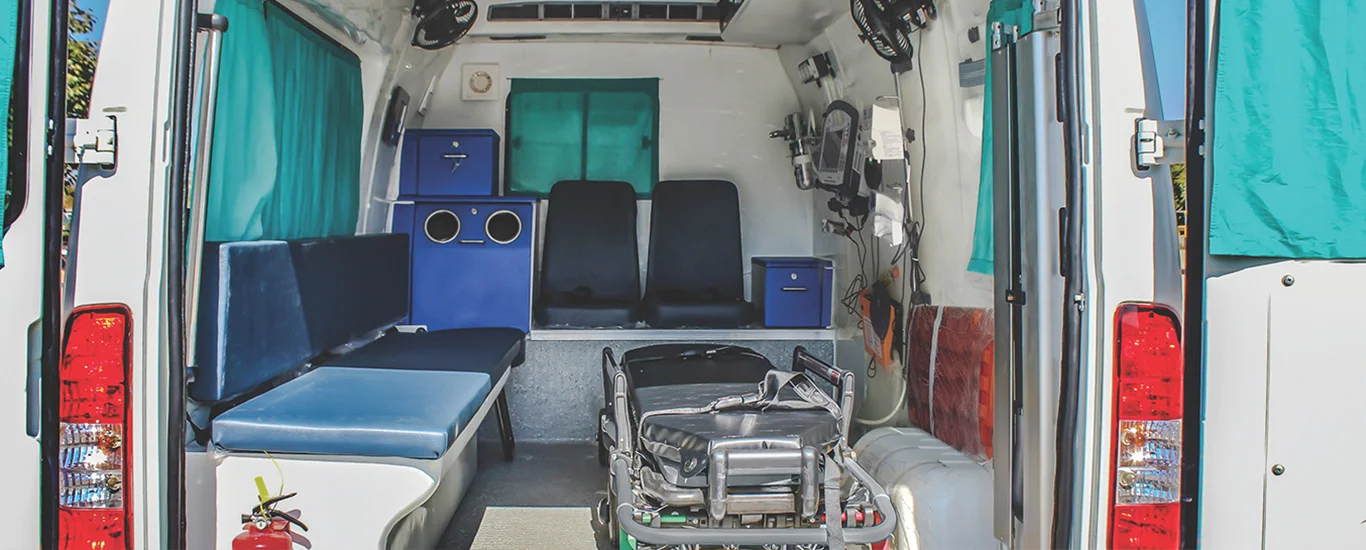

ambulance-b-2 (1)

Technical Specifications

Seating Capacity
Seating Capacity

3+D+2P

Engine FM 2.6 CR ED Displacement 2596 cc
Emission BS-VI Stage 2 Max Output 85kW (114hp) @ 2950 rpm
Type 4 Cylinder, Common Rail, DI TCIC Max Torque 350Nm @ 1400–2200 rpm
Bore x Stroke (mm) 90.9 x 100
Wheelbase 3350 Overall Height 2670
Overall Length 5615 Ground Clearance 200
Overall Width 2225
Maximum GVW4125
FrontSemi-elliptical Leaf Springs with Hydraulic Shock Absorber and Anti-Roll Bar
Rear

Semi-Elliptical Leaf Springs with Hydraulic Shock Absorbers

Tyre Size

215/75 R15


Tyre TypeRadial with Tubeless (4+1)
