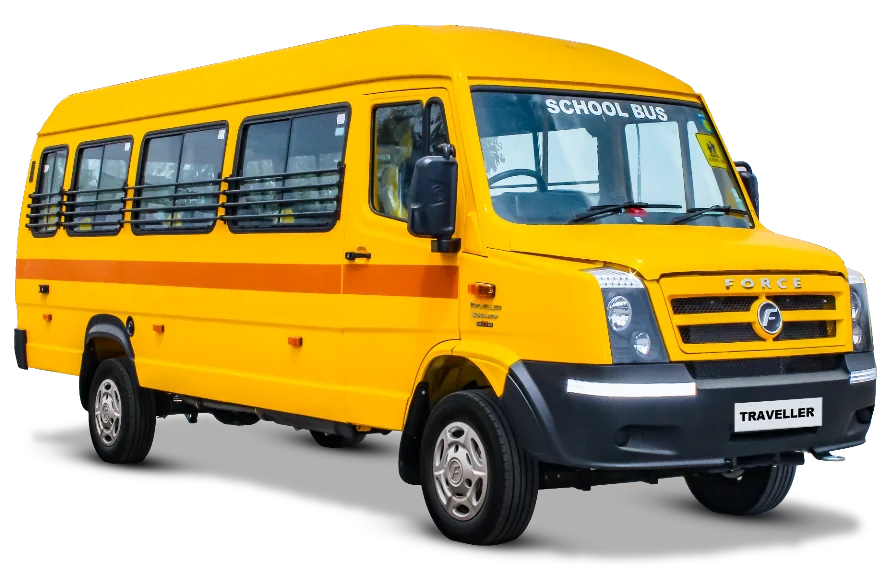

Traveller School Bus 4020WB - Agrawal Motors

Traveller School
Bus 4020WB

Traveller School Bus 4020WB 19+A+D

Salient Features

Synchromesh G-32 gearbox for effortless gear shifting

Monocoque body ensures total safety and car-like ride quality

Mercedes-derived, highly powerful and fuel-efficient FM 2.6 CR powertrain

ABS and EBD

24+A+D/30+A+D/33+A+D

Large internal rear view mirror and driver partition

First and Kit and Fire Extinguisher in case of emergency

Now, with Best-in-Class & Protection Fire Alarm System for more safety in case of fire

traveller-school-bus-7

traveller-school-bus-8

traveller-school-bus-1

traveller-school-bus-2

traveller-school-bus-3

traveller-school-bus-4

traveller-school-bus-6

traveller-school-bus-5

Technical Specifications

Seating Capacity

Seating Capacity	19+A+D

Body

Body Type	Monocoque Construction

Engine

Engine	FM 2.6 CR ED	Displacement	2596 cc
Emission	BS-VI Stage 2	Max Output	85kW (114hp) @ 2950 rpm
Type	4 Cylinder, Common Rail, DI TCIC	Max Torque	350Nm @ 1400–2200 rpm
Bore x Stroke (mm)	90.9 x 100

Dimensions (mm)

Wheelbase	4020	Overall Height	2550
Overall Length	6966	Ground Clearance	200
Overall Width	1900

Weight (kg)

Maximum GVW	4675

Suspension

Front & Rear	Spring Semi-elliptical
Anti-Roll Bar	Front – Yes / Rear – Optional
Shock Absorbers	Hydraulic telescopic double acting at front and rear
