Seating Capacity

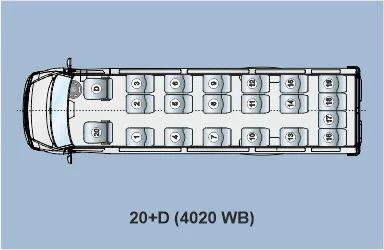

Seating Capacity	20+D
Seating Type	High-back

Body

Body Type	Monocoque Construction

Engine

Engine	FM 2.6 CNG ED	Displacement	2596 cc
Emission	BS-VI Stage 2	Max Output	76Kw(102hp) @ 2800 rpm
Type	Spark Ignition MPFI TCIC	Max Torque	310Nm @ 1600-2400 rpm
Electrical System	12V, 100 Ah	Fuel Type	CNG



Gearbox



Make & Model	FG32-5
No. of Gears	5 Forward + 1 Reverse
Type	Manual, Synchromesh on forward gears

Dimensions (mm)

Wheelbase	4020	Overall Height	2760
Overall Length	6935	Ground Clearance	200
Overall Width	1925

Weight (kg)

Maximum GVW	4850

Suspension

Front & Rear	Spring Semi-elliptical
Anti-Roll Bar	Front-Yes, Rear (Optional)
Shock Absorbers	Hydraulic telescopic double acting at front and rear

Wheels & Tyres



Tyre Size	235/65 R16
Tyre Type	Radial Tubeless (4+1)
Tyre Nos	4+1
